User Interface

5G DOME ROUTER

User Interface

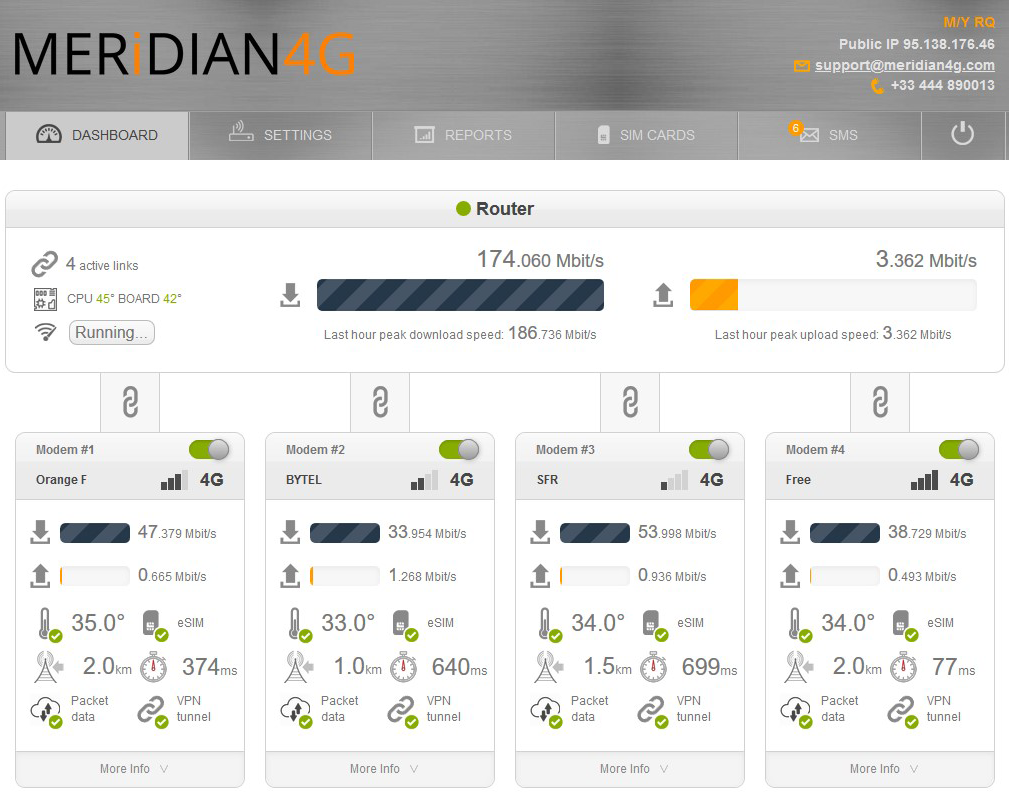

Main dashboard, 4 modems bonded, downlink speedtest running

Shows current throughput (total and per link), last hour peak throughput reached, CPU/mainboard/modem temperature reports, mobile carrier name, distances to the cell towers in use in km, connection latencies in ms, packet data and VPN tunnel status information.

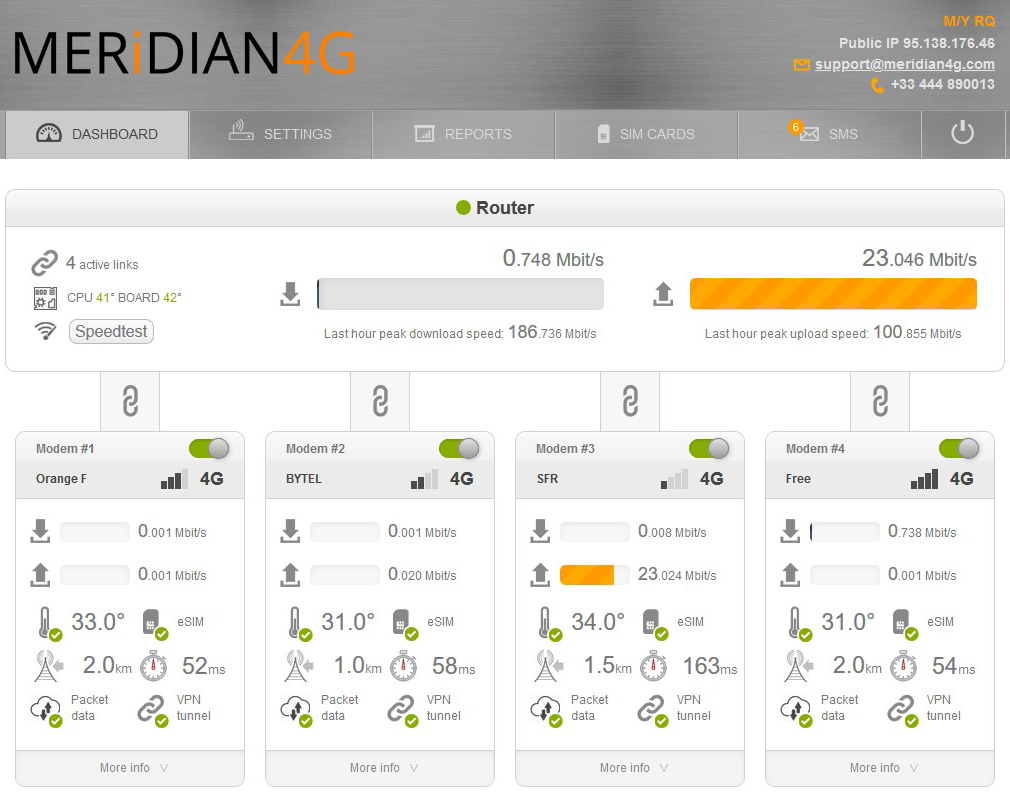

Main dashboard, 4 modems bonded, random user traffic in uplink

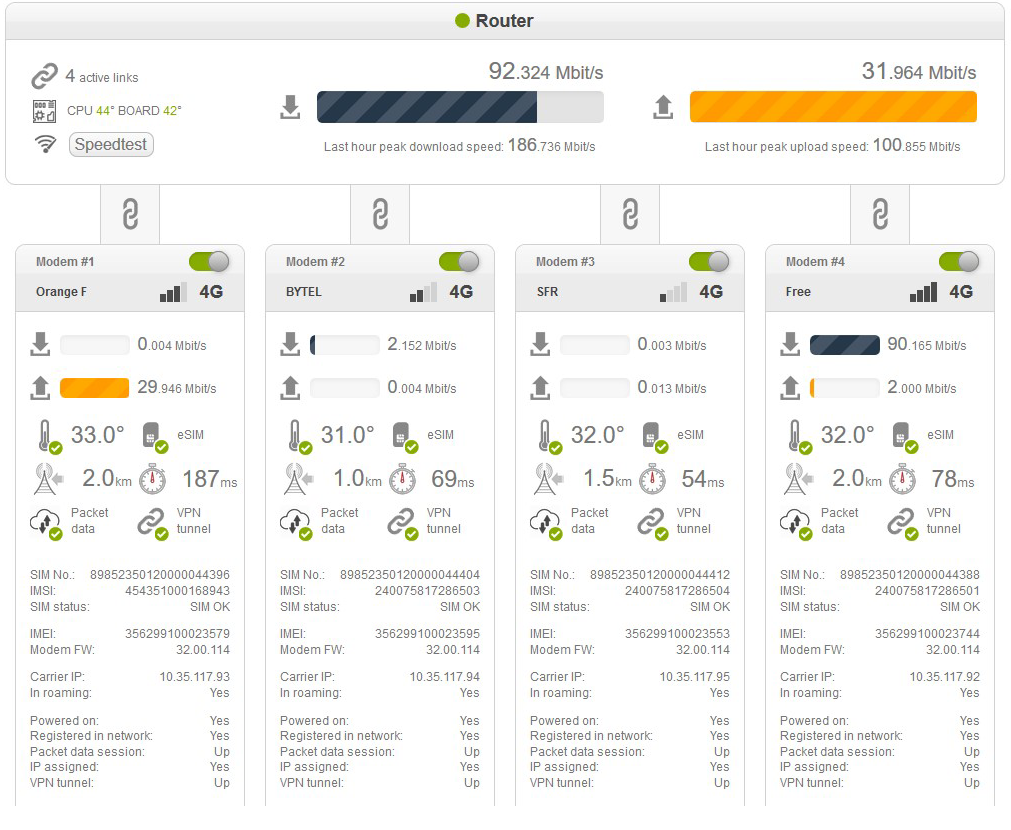

Main dashboard – detailed view, 4 modems bonded, random user traffic

Main dashboard, 1 modem online, 3 modems switched off, uplink speedtest running

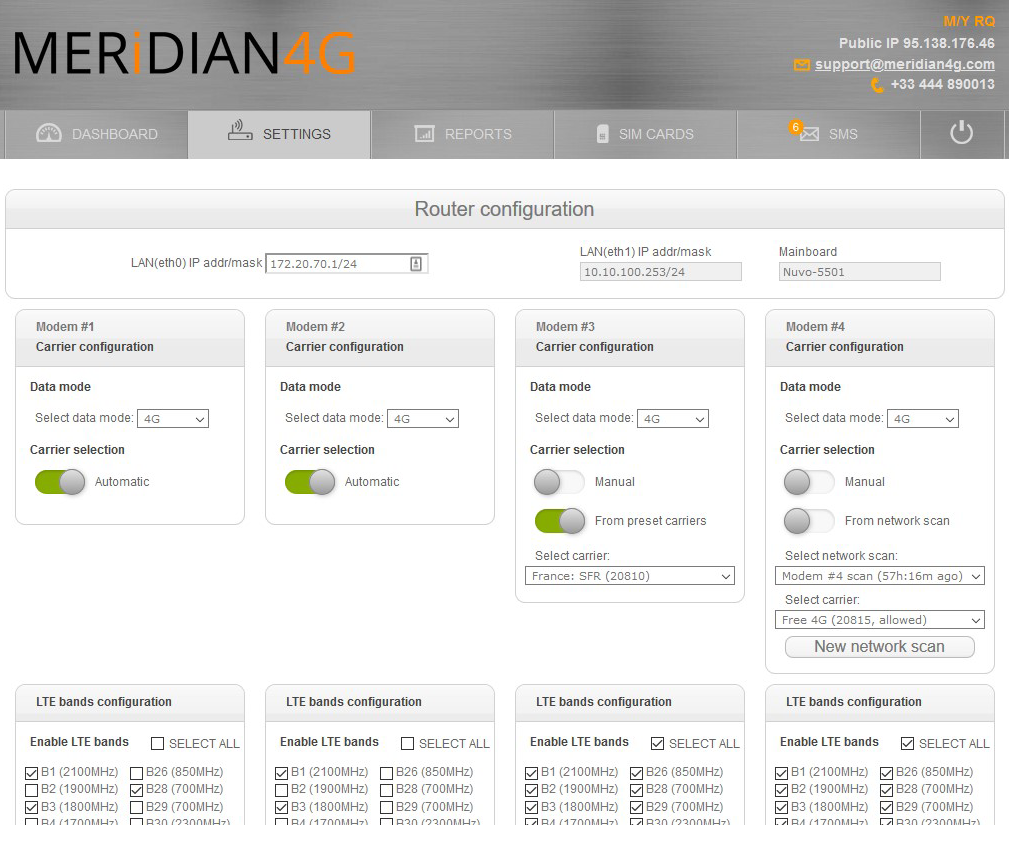

Router settings menu: carrier configuration (data mode – 3G/4G/3G+4G, mobile carrier selection – auto, preset); sim configuration (APN settings, PIN)

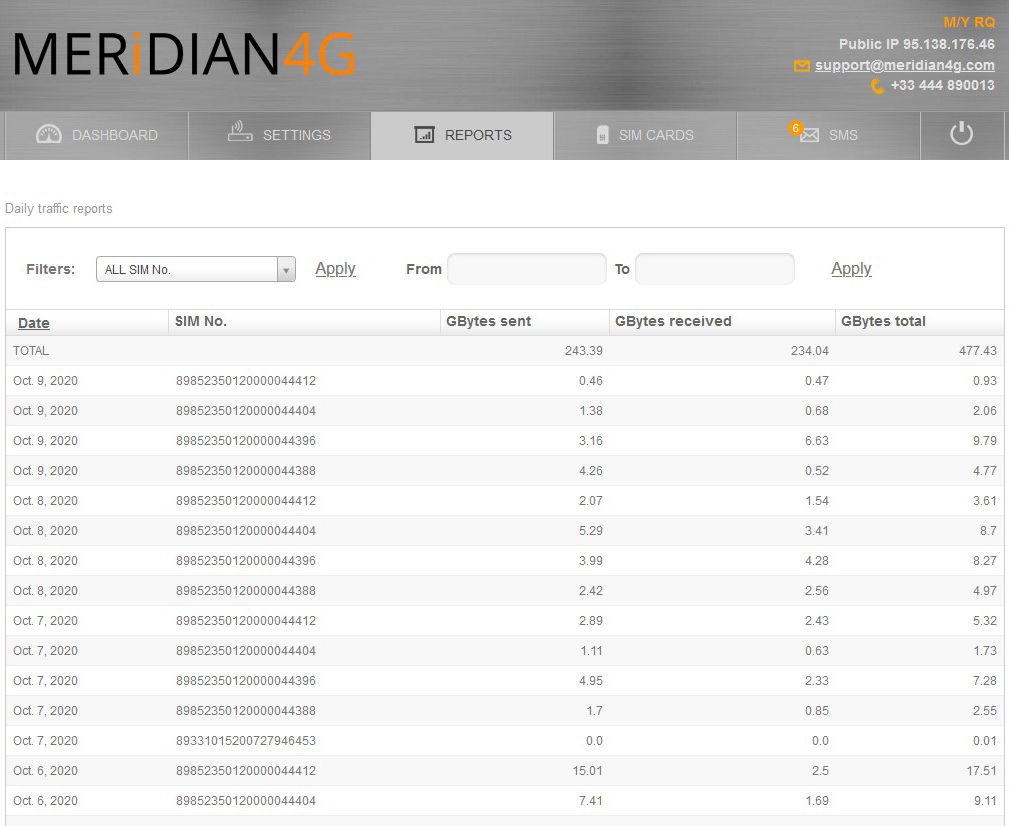

Daily traffic consumption reports for all 4x SIM cards

Advanced cellular network status report
