5G / Multi SDWAN Router
5G and LEO connection bonding or load-balancing

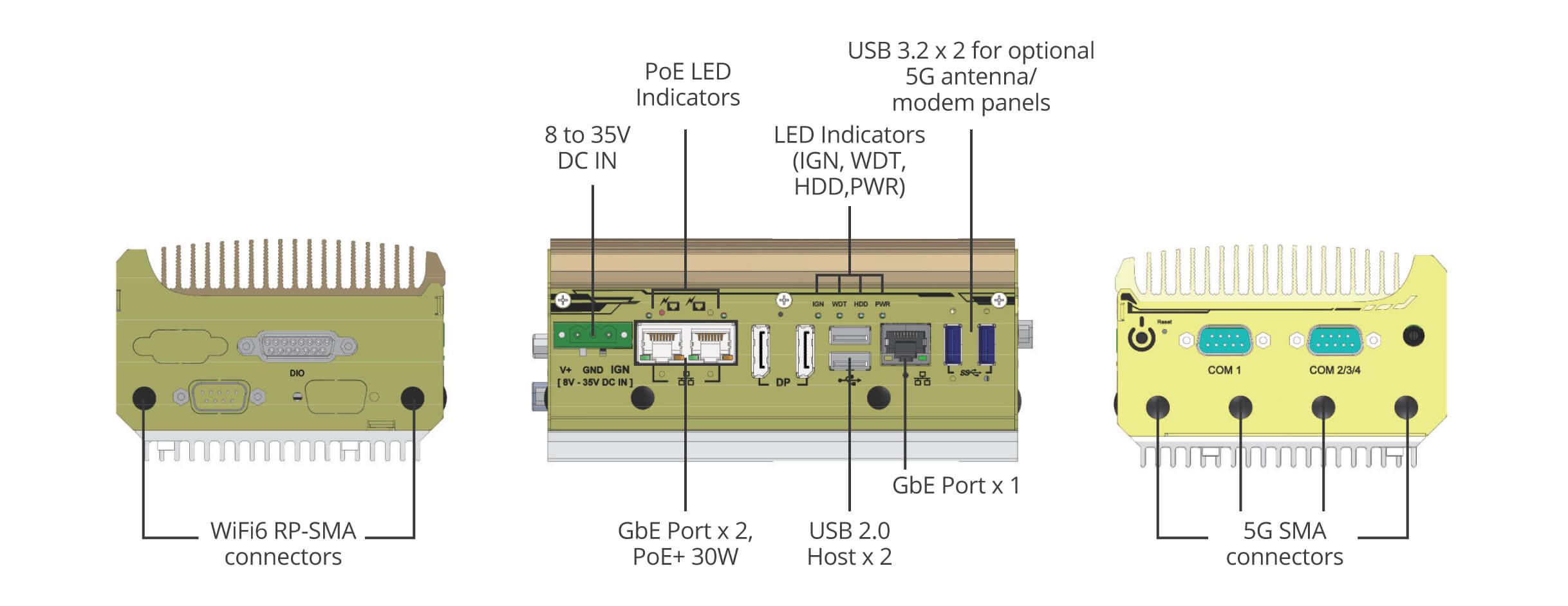

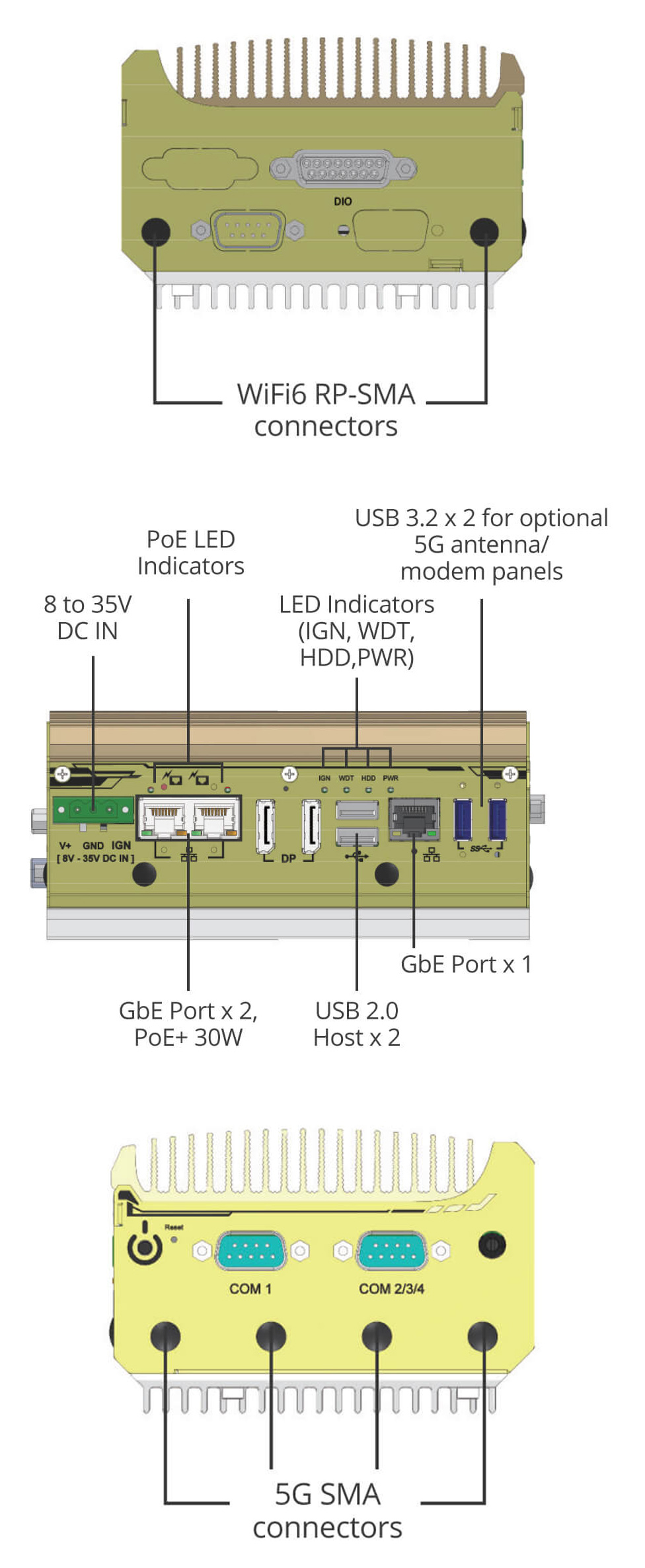

WAN:
- 5G modem with 2 push-pull SIM slots (Nano, 4FF); 4x SMA(f) connectors
- WiFi 6 bridge and access-point mode; 2x RP-SMA(f) connectors; MU-MiMo
- Dual-LEO (e.g. Starlink Maritime) connectivity
- Dimensions: 153mm (width), 108mm (depth), 72mm (height)
- Weight: 2kg
- Mounting: wall, ceiling or DIN rail
- Operating temperature: -40° to +75°C
- Power: 120W peak load. DC 8..35V (24V recommended) – terminal block
- Network: 3x RJ45 2.5Gbps (100/1000Mbps compatible), thereof 2x PoE+ 30W
Modems:
1 x 4G/5G modems (LTE-A-Pro) with 3G fall back (based on Qualcomm Snapdragon X55)
(Power Class 2, max. TX power 0.4W)
MAXIMUM SPEED per modem:
Download: 2.0 Gbit/s per modem, 7xCA, max. Modulation 256QAM
Upload: 211 Mbit/s per modem, 2xCA, max. Modulation 256QAM
SUPPORTED RF BANDS (Worldwide Coverage)
Technology
Bands
Diversity Connection
3G
B1, B2, B4, B5, B6, B8, B9, B19
YES
4G LTE-A-PRO
B1-B5, B7, B8, B12-B14, B17-B20, B25, B26, B28-B30, B32, B34, B38-B43, B46, B48, B66, B71
YES (4×4 MIMO)
5G
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48,
n66, n71, n77, n78, n79
n66, n71, n77, n78, n79
YES (4×4 MIMO)
Technology
3G
Bands
B1, B2, B4, B5, B6, B8, B9, B19
Diversity Connection
YES
Technology
4G LTE-A-PRO
Bands
B1-B5, B7, B8, B12-B14, B17-B20, B25, B26, B28-B30, B32, B34, B38-B43, B46, B48, B66, B71
Diversity Connection
YES (4×4 MIMO)
Technology
5G
Bands
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Diversity Connection
YES (4×4 MIMO)
User Interface:
DASHBOARD:
Modem Status
System Status
System Control
- SIM card inserted
- Connection status
- Aggregation status
- Temperature
- Error indication
- Aggregator status
- Current network load (down/up)
- Temperature
- Error indication
- Power down
- Reset
Modem Status
- SIM card inserted
- Connection status
- Aggregation status
- Temperature
- Error indication
System Status
- Aggregator status
- Current network load (down/up)
- Temperature
- Error indication
System Control
- Power down
- Reset
FURTHER CONTROL:
Modem Status
System Status
System Control
- Reset
- Set offline
- Roaming on/off
- Modem Status information (IMEI,Signallevel..)
- PIN/PUK
- C/E Description
- Roaming on/off
- Contract or pay as you go data package
- Limit for signal Level
- Limit for network technology
- Limit for BER (bit error rate)
- Limit for latency
Modem Status
- Reset
- Set offline
- Roaming on/off
- Modem Status information (IMEI,Signallevel..)
System Status
- PIN/PUK
- C/E Description
- Roaming on/off
- Contract or pay as you go data package
System Control
- Limit for signal Level
- Limit for network technology
- Limit for BER (bit error rate)
- Limit for latency
